Overview of CI/CD for startup

Chen Xi hixichen@github

CI

• Jenkins requires SRE team. Never a option for small startup.

• Circle CI: ios/osx support, API integrated with AWS code deploy, ssh debug, docker support.

• Github action: fully integrated with github, easy, free to small team.

• Tekton: pipeline on k8s, nice future, under developing, requires ops work.

Github Action

• Mainly used for unit test: build & test

Note:

• Requires git permission to other private repos.
• Secrets are shared for org, requires better RBAC model.

CD

Requirements:

• Fully automated
• Can be triggered by event and manual
• Multiple steps for one stage: test,deploy and verify
• Multiple stages: dev, stable, staging(canary), production
• One config for all stage with env update only.
• Block/Approve model between stages

Why AWS code pipeline:

• Source: S3/Github public/private repo
• Build: aws codebuild
• mage: aws ECR
• Trigger: ecr new image or manual release
• Test: directly run or apply yaml for test
• Deployment: read yamls from source code
• Detect: check health via curl or yaml Job

CD for kubernetes:

• kustomize - Dynamic configurations in Kubernetes, Built in kubectl -k now!

~/myapp
├── base
│   ├── deployment.yaml
│   ├── kustomization.yaml
│   └── service.yaml
└── overlays
    ├── test
    │   ├── dev.yaml
    │   ├── integration.yaml
    │   └── stress.yaml
    ├── development
    │   ├── cpu_count.yaml
    │   ├── kustomization.yaml
    │   └── replica_count.yaml
    └── production
        ├── cpu_count.yaml
        ├── kustomization.yaml
        └── replica_count.yaml

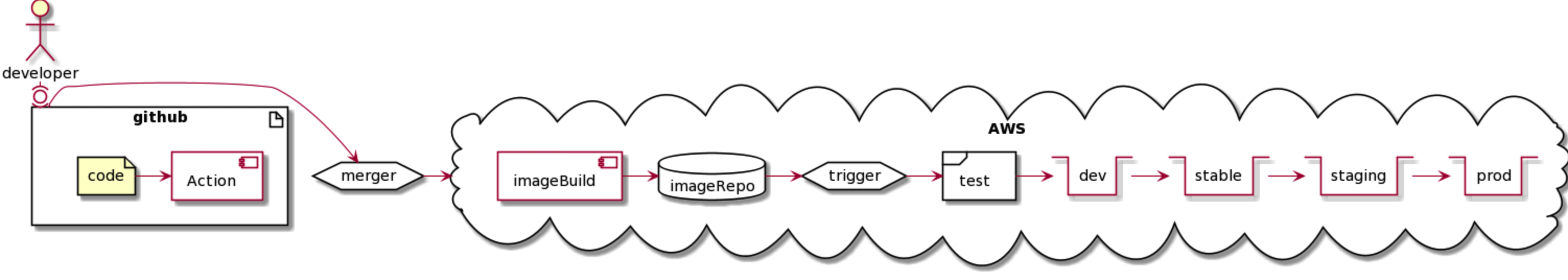

Overview:

stage: dev

1. build image
2. publish imagae
3. apply
   • kubectl apply -k config/{ENVIRONMENT}
4. use local deploy DB for test

stage: stable

1. apply
2. run integration test
3. use single instance DB on AWS for test only.

stage: staging

1. apply
2. run integration test, perf test
3. use multiple instance DB with backup on AWS.
4. Try to simulate production env as much as you can.

stage: production

1. release with shadown
2. require manul approved process for pipeline.
